Reproduce
Make undefined behavior visible without pretending that one observed output is guaranteed.
Engineering evidence, not guessesHands-on extension to “Beyond Breakpoints”
From breakpoints
to evidence.
A repeatable C++ lab that turns a delayed heap-use-after-free into a verified cause, a minimal ownership fix, and a permanent regression check.
PurposeWhy we built it
Make the debugging workflow tangible.
Vivek Bhadra’s article explains why one tool cannot answer every debugging question. We turned that principle into a public lab where each tool has a precise job.
Explain
Separate the late symptom from the earlier lifetime-ending event that caused it.
Verify
Prove the smallest correction with sanitizers and regression tests—not confidence alone.
The defectA realistic ownership mistake
The pointer survives.
The object does not.
1 · Borrowed pointer escapes into the cache
const Reading* cached_reading = nullptr; void cache_for_dashboard(const Reading& reading) { cached_reading = &reading; }
2 · Owner retires the object; cache still points there
void retire_reading(std::unique_ptr<Reading>& reading)
{
reading.reset();
}
// later, elsewhere...
const Reading& reading = *cached_reading;
A non-null address proves only that bits remain in the pointer. It does not prove that a live object still occupies that address.
The misleading symptomCorrect-looking output is not correctness
Undefined behavior can look plausible.
Expected record
The dashboard cache should retain the original reactor-inlet reading.
≠
Observed record
A later allocation can reuse the same heap address, making unrelated data appear in the dashboard.
cached object at 0x603000000040
new object at 0x603000000040
cached reading: id=9001, value=-273.15, label=unrelated-record
The repeatable workflowFive stages, one command
Move deliberately between forms of evidence.
1 · BuildDebug symbols, frame pointers, useful warnings.
2 · ObserveCapture the visible symptom without over-interpreting it.
3 · DiagnoseAddressSanitizer identifies the invalid memory operation.
4 · InspectGDB stops at the delayed use and exposes program state.
5 · VerifyCorrected sanitizer target and regression tests must pass.
C:\amp-demos\cpp-debugging-demo> run_demo.bat ... SUCCESS: symptom, root-cause evidence, debugger inspection, and fix verified.
AddressSanitizerThe causal timeline
ASan connects the symptom to its history.
FirstA
Allocation in
main()Where the object’s valid lifetime begins.ThenF
Deallocation in
retire_reading()The causal event: unique_ptr::reset() ends the object’s lifetime.LaterR
Invalid read in
render_dashboard()The visible symptom occurs away from the cause.That allocation → free → invalid-read chain is stronger than guessing from the crash line.
GDBInteractive inspection
GDB shows why “not null” is not enough.
break cache_for_dashboard break retire_reading break render_dashboard run print cached_reading continue backtrace full info locals
Before retirementThe cache and owner refer to the same live object.
After retirementThe cached pointer still contains the same address.
At the symptomThe address exists, but the object lifetime has ended.
The correctionFix ownership, not the symptom
The cache must own what it retains.
Before · borrowed lifetime
const Reading* cached_reading;
cached_reading = &reading;
// Owner can destroy reading independently.After · cache-owned value
std::optional<Reading> cached_reading;
cached_reading = reading;
// Cache retains a valid independent value.Original ID retained
The corrected program prints id=42.
Sanitizer clean
The corrected ASan target has no lifetime finding.
Regression protected
CTest makes the expected behavior repeatable.
What our work addsFrom article to runnable artifact
A practical companion—not a replacement.
Public source
A small C++17 project readers can inspect, modify, and teach from.
One-click runner
A Windows batch file orchestrates the WSL build and all five verification stages.
Repeatable state
Every run rebuilds the diagnostic targets, so the demonstration can be repeated safely.
Findings dashboard
A local browser view presents progress, confirmed findings, code changes, and terminal evidence.
Executable acceptance
The runner fails if expected sanitizer evidence or corrected tests are missing.
Symptom vs. cause
The lab explicitly teaches that the crash location and causal event may be far apart.

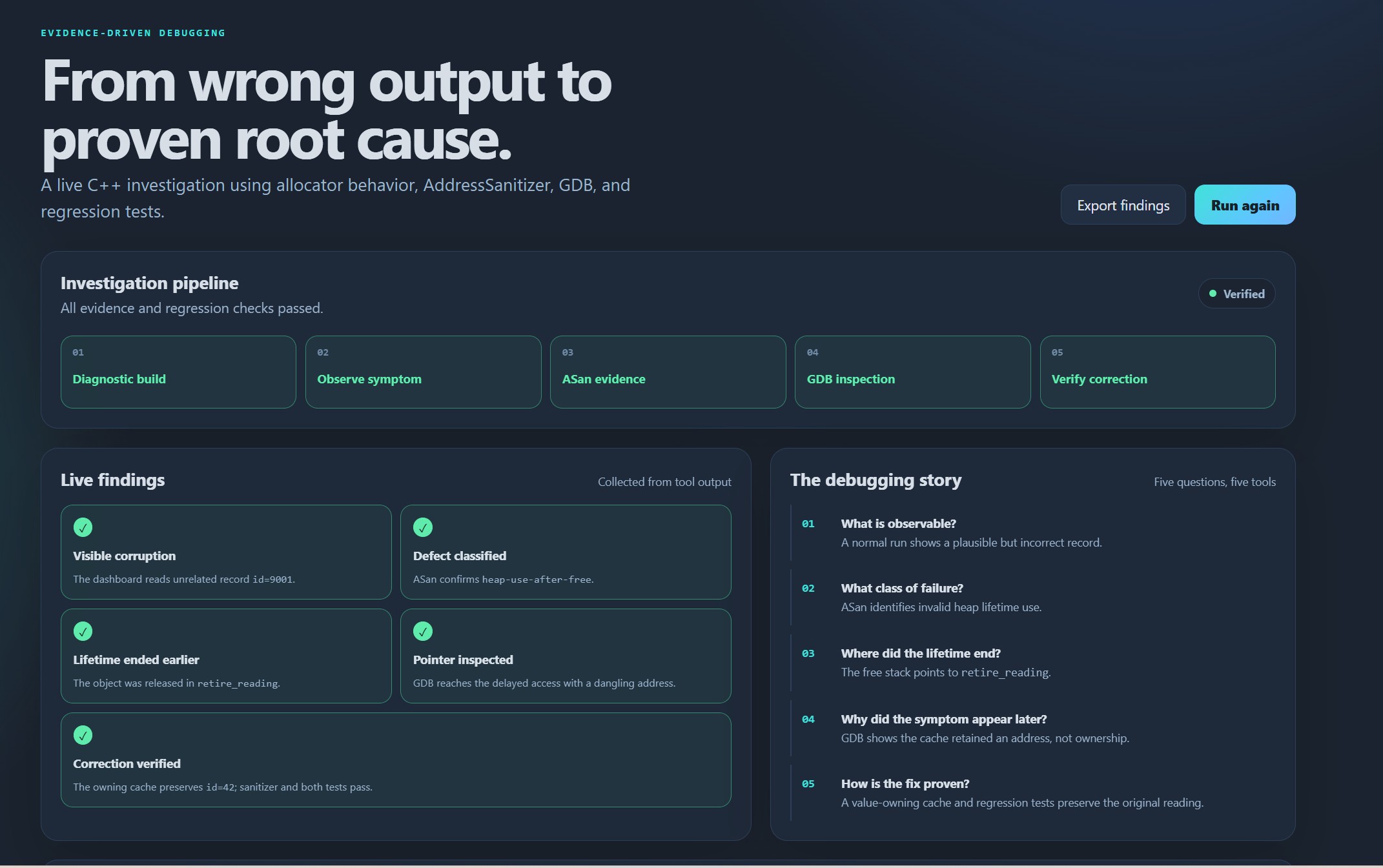

One-click dashboardThe easiest way to present the demo
One click runs the full investigation.
1 · LaunchDouble-click
start_dashboard.bat. It selects a free local port and opens the browser—no WSL window is required.2 · RunClick Run complete demo and watch build, symptom, ASan, GDB, and verification stages update live.
3 · Present againUse Run again to repeat the same controlled investigation from a clean build.

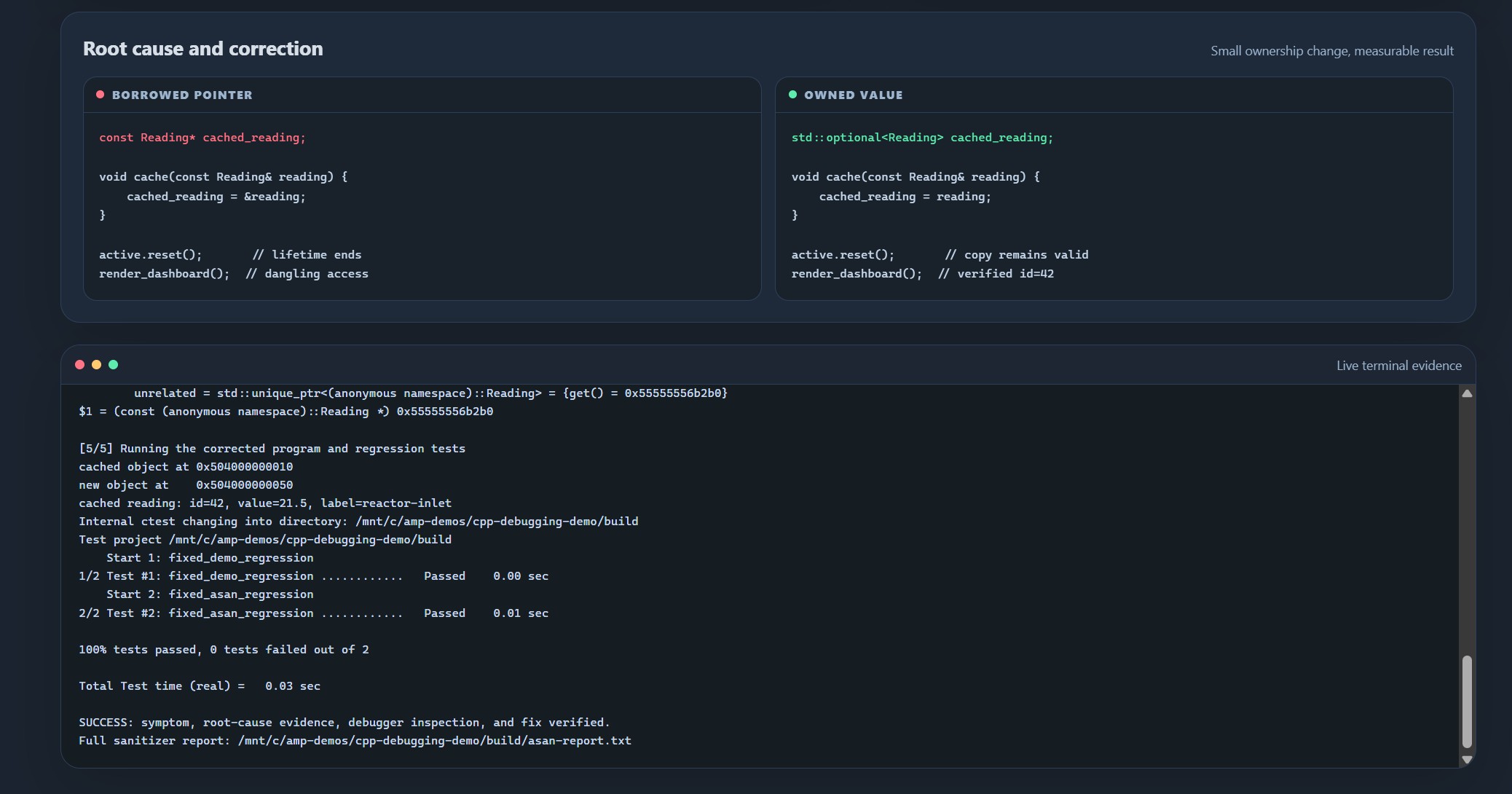

Dashboard evidenceCause, correction, and proof in one view
The dashboard explains what the run proved.
DefectA borrowed pointer remains in the cache after the pointed-to object’s lifetime ends.
Correction
std::optional<Reading> gives the cache ownership of the retained value.ProofThe terminal preserves debugger observations, clean sanitizer execution, and two passing regression tests.
TakeawayThe audience sees the complete evidence chain—not only a final “fixed” message.
Run it yourselfPublic, open, repeatable
What you need—and what to run.
Prerequisites
Windows + WSLWith a Linux distribution available.
Build toolsCMake, GCC or Clang, and GDB.
Optional dashboardPython 3.9 or newer.
git clone https://github.com/zuwasi/cpp-debugging-demo.git cd cpp-debugging-demo run_demo.bat # or launch the visual dashboard start_dashboard.bat
Closing principleThe engineering lesson
AI may propose.
The engineering toolchain must verify.
The engineering toolchain must verify.
The durable result of debugging is not merely an explanation. It is evidence, a justified correction, and an automated check that prevents rediscovery.
